Round Sling POWERTEX PRS

POWERTEX Round slings PRS are made from high strength polyester yarn having a strong protective cover.

The PRS slings are color coded for quick and easy identification of the Working Load Limit (WLL).

Only standard slings with full ton WLL are shown in the chart, but PRS slings can be delivere

Show more

Show table
Product number:
Powertex
  • Cr6+ Free

POWERTEX Round slings PRS are made from high strength polyester yarn having a strong protective cover.

The PRS slings are color coded for quick and easy identification of the Working Load Limit (WLL).

Only standard slings with full ton WLL are shown in the chart, but PRS slings can be delivered with any WLL and length on request.

  • Safe – All POWERTEX PRS slings are made from high strength industrial polyester and tested in accordance to EN 1492-2
  • Durable protective cover
  • Each sling carry a blue label giving correct WLL for different load connection methods and angles
  • Each sling is marked with a unique serial number for safe sling registration
  • Serial number is expressed both in numeric format as well as Barcode for quick registration and maintenance
  • Year/Month calendar printed on the label where next inspection date can be marked or punched
  • Printing on the blue label is protected by an additional transparent plastic layer for long life
  • All roundslings carry a white label showing pictogram with important user warning instructions
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each sling

Chemical resistance: Resistant to most acids, but not strong alkalizes.
Stretch at working load: 2-3%.
Length tolerance: Nominal length (EWL) ±2%.

  • Material: Polyester
  • Marking: According to standard, CE-marked, UKCA-marked, POWERTEX, WLL, EWL, manufacturing year, batch number, sling’s unique serial number, QR code, Inspection calendar, user warning instructions
  • Temperature range: -40°C up to +100°C.
  • Standard: EN 1492-2
  • Note: According to EN 1492-2:2000+A1:2008: D.3.6: Slings should be protected from edges, friction and abrasion, whether from the load or the lifting appliance. Where reinforcements and protection against damage from edges and/or abrasion is supplied as part of the sling, this should be correctly positioned. It may be necessary to supplement this with additional protection.
  • Safety factor: 7:1

Roundsling polyester

EN 1492-2

Safety Factor 7:1

Straight pull Basket hitch Choke hitch Basket hitch
andlos-rakt andlos-uform andlos-snarat vinkel
0°−45° 45°−60°
Color Working load limit (WLL) in tons
Purple 1,0 2,0 0,8 1,4 1,0

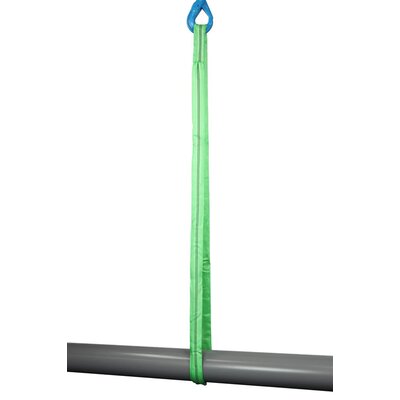

Green 2,0 4,0 1,6 2,8 2,0

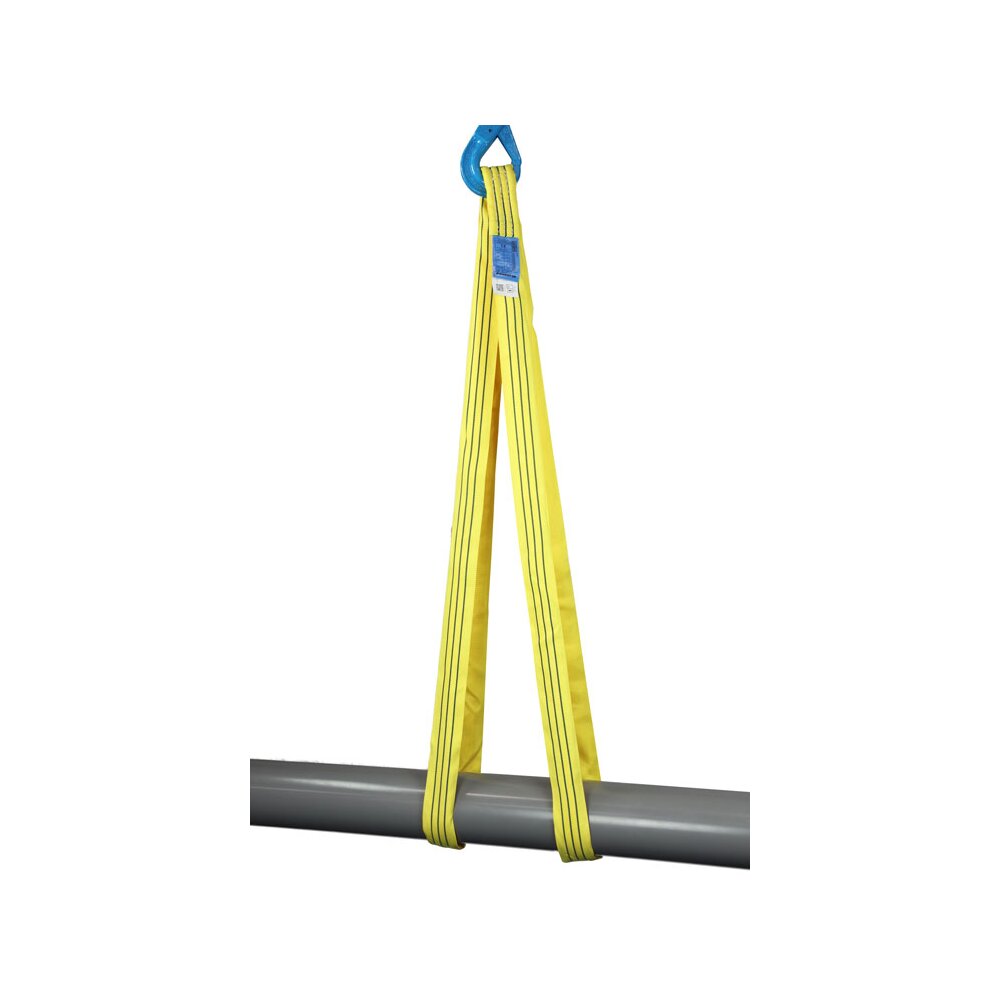

Yellow 3,0 6,0 2,4 4,2 3,0

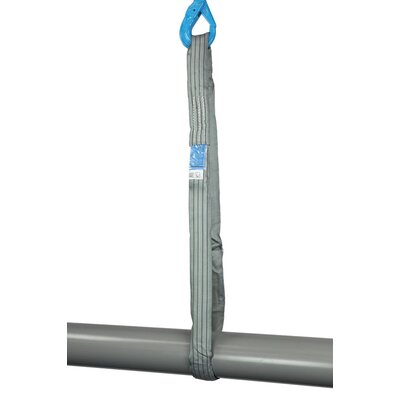

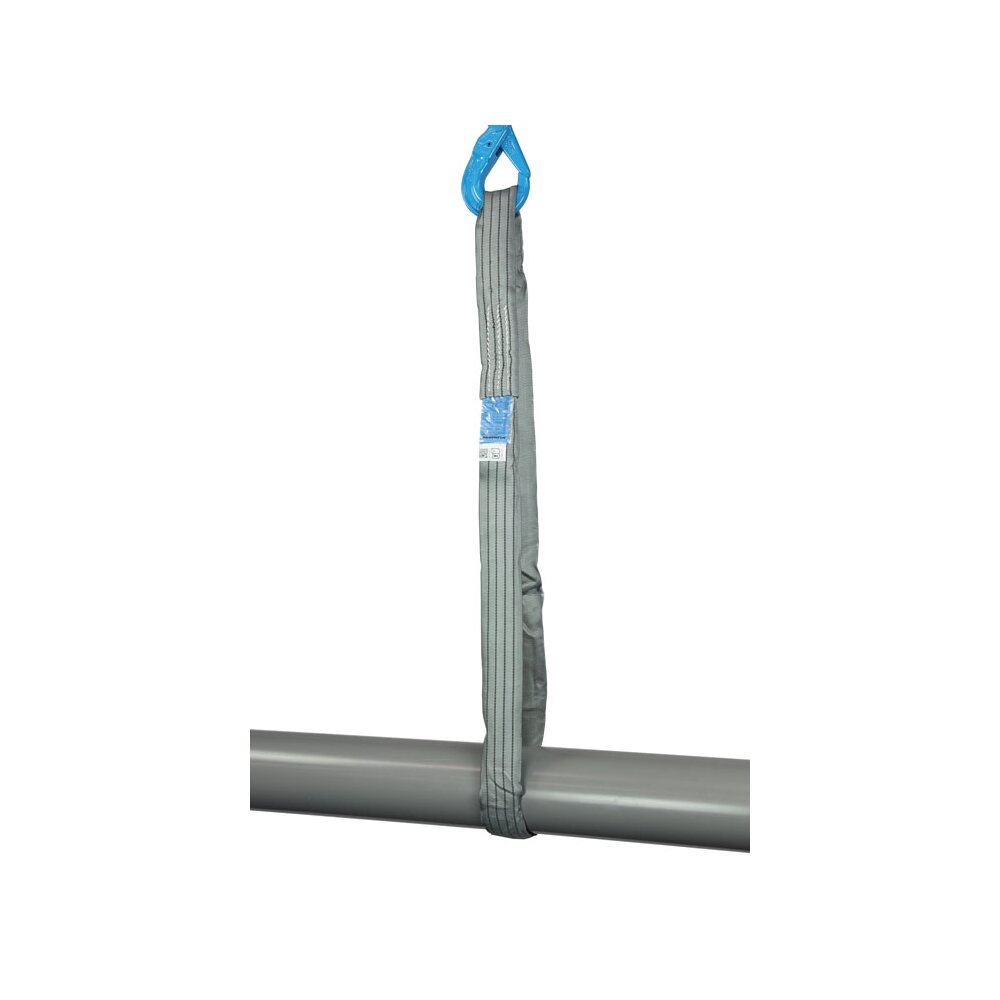

Grey 4,0 8,0 3,2 5,6 4,0

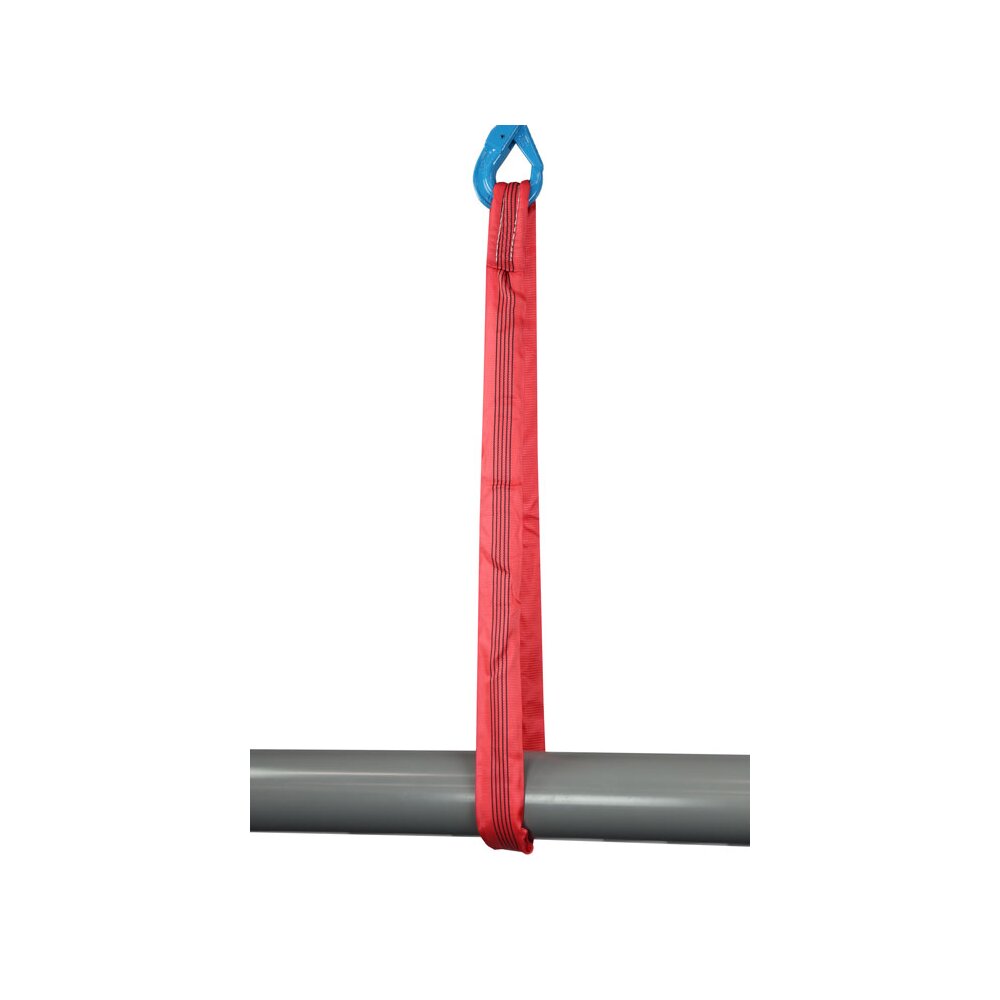

Red 5,0 10,0 4,0 7,0 5,0
Brown 6,0 12,0 4,8 8,4 6,0

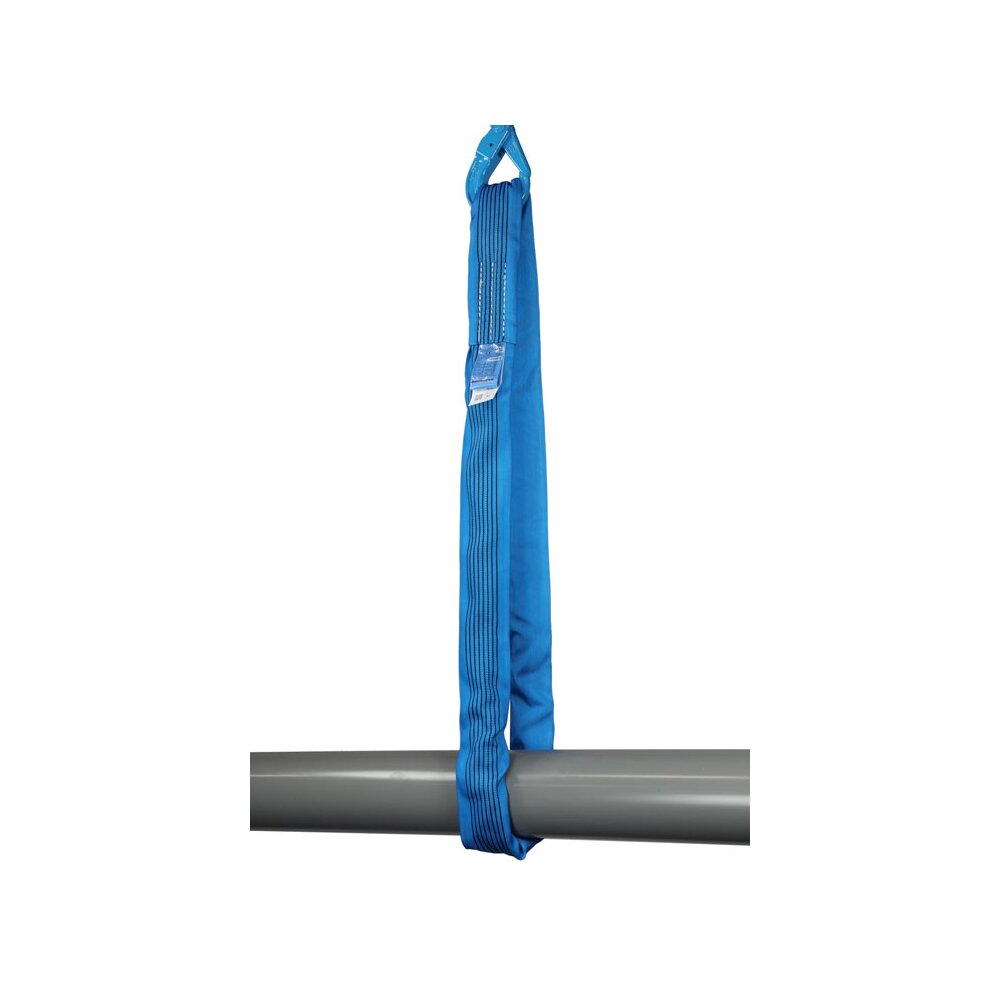

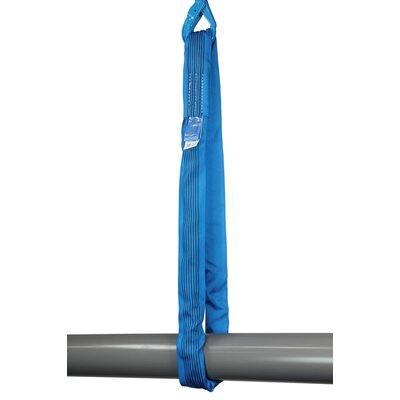

Blue 8,0 16,0 6,4 11,2 8,0

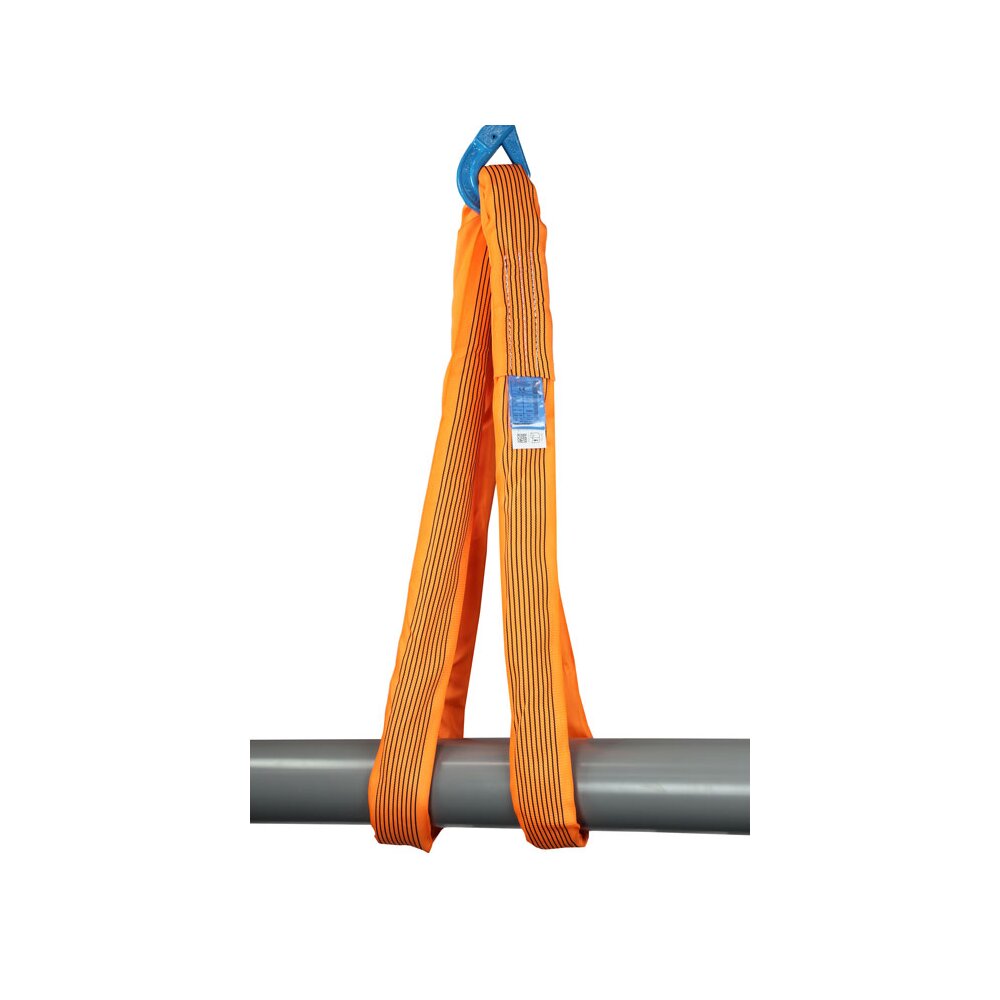

Orange 10,0 20,0 8,0 14,0 10,0
Orange 12,0 24,0 9,6 16,8 12,00
Orange 15,0 30,0 12,0 21,0 15,0
Orange 20,0 40,0 16,0 28,0 20,0
Orange 25,0 50,0 20,0 35,0 25,0
Orange 30,0 60,0 24,0 42,0 30,0
Orange 35,0 70,0 28,0 49,0 35,0
Orange 40,0 80,0 32,0 56,0 40,0
Orange 50,0 100,0 40,0 70,0 50,0
Orange 60,0 120,0 48,0 84,0 60,0
Orange 70,0 140,0 56,0 98,0 70,0
Orange 80,0 160,0 64,0 112,0 80,0
Orange 85,0 170,0 68,0 119,0 85,0
Orange 90,0 180,0 72,0 126,0 90,0
Orange 100,0 200,0 80,0 140,0 100,0
Orange 125,0 250,0 100,0 175,0 125,0
Orange 150,0 300,0 120,0 210,0 150,0
Orange 175,0 350,0 140,0 245,0 175,0
Orange 180,0 360,0 144,0 252,0 180,0
Orange 200,0 400,0 160,0 280,0 200,0
Factor (KL) 1 2 0,8 1,4 1
